Model Number | O.A.Dims - in. | Installation Dims - in. | Packing Dims - mm | Qty /pallet | CBM | |||||
L | W | H | L | W | L | W | H | |||
JFDA-1224S | 26 | 14 | 4 | 24 | 12 | 705 | 400 | 200 | 13 | 0.056 |
JFDA-1230S | 32 | 14 | 4 | 30 | 12 | 855 | 400 | 200 | 13 | 0.068 |
JFDA-1236S | 38 | 14 | 4 | 36 | 12 | 1010 | 400 | 200 | 13 | 0.081 |
JFDA-1242S | 44 | 14 | 4 | 42 | 12 | 1160 | 400 | 200 | 13 | 0.093 |
JFDA-1248S | 50 | 14 | 4 | 48 | 12 | 1315 | 400 | 200 | 13 | 0.105 |
JFDA-1254S | 56 | 14 | 4 | 54 | 12 | 1465 | 400 | 200 | 13 | 0.117 |
JFDA-1260S | 62 | 14 | 4 | 60 | 12 | 1620 | 400 | 200 | 13 | 0.130 |
JFDA-1272S | 74 | 14 | 4 | 72 | 12 | 1925 | 400 | 200 | 13 | 0.154 |
JFDA-1284S | 86 | 14 | 4 | 84 | 12 | 2230 | 400 | 200 | 13 | 0.178 |
JFDA-1296S | 98 | 14 | 4 | 96 | 12 | 2535 | 400 | 200 | 13 | 0.203 |

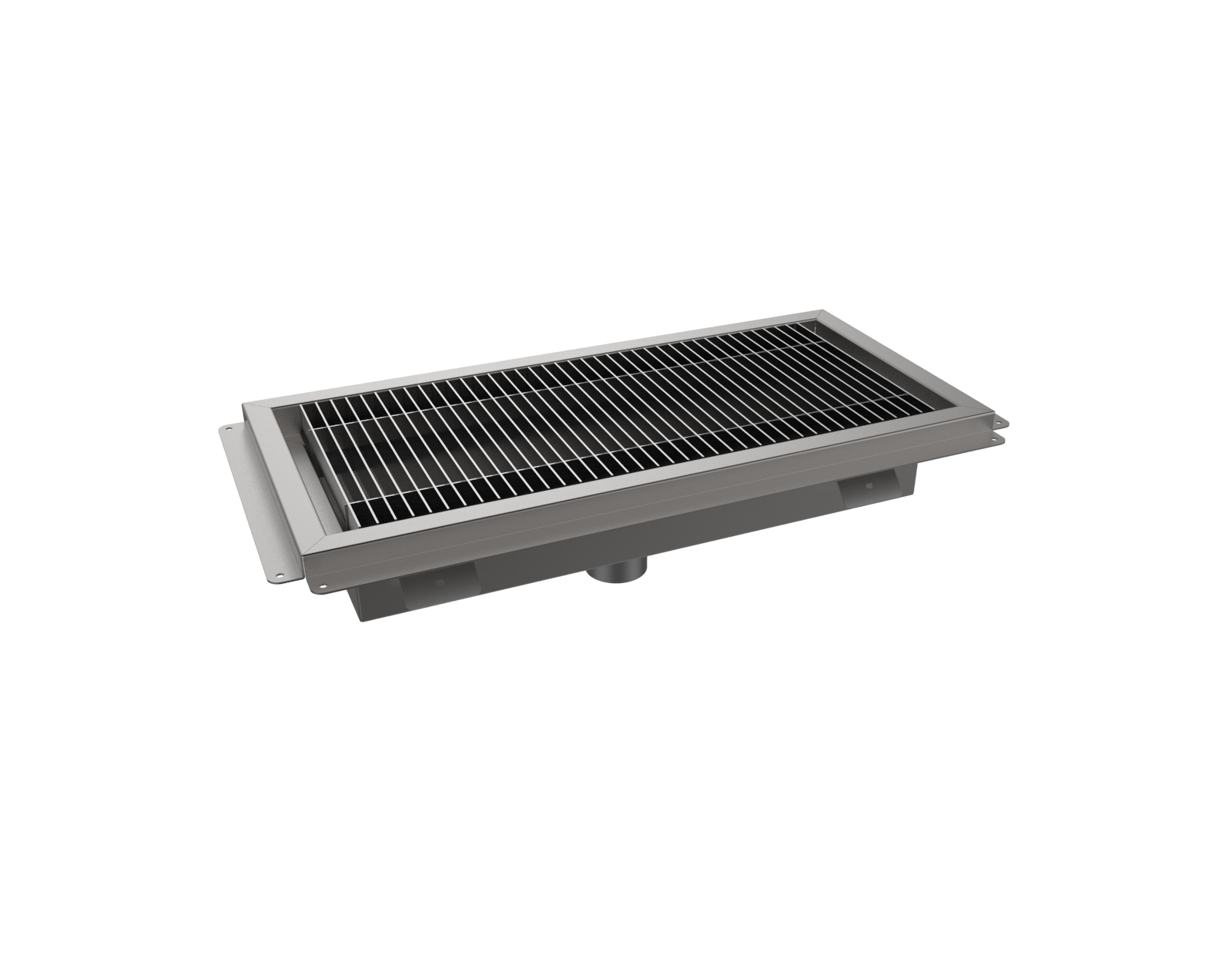

Floor Trough
Product Features:
• 14 Ga. stainless steel 304 stain finish with no welded seams
• Includes 4" O.D. - 3" Long Plumbing Sleeve.
• Removable perforated stainless steel strainer basket with handle provided.
• Pitched towards waste.
• Includes “Subway Style” grating from 3/16" x 1" stainless steel bar.
• Grating is spaced 9/16" (Inside clearance) between bars to prevent casters from getting trapped.
• Troughs 96" in length made with two (2) drains.
