Model | JWEHE-14085170S | JWEHE-9085170S |
Dimensions (Length) [mm] | 1400 | 900 |
Dimensions (Width&Height) [mm] | 850*1700 | |
Number of exhaust connections [pcs] | 1 | 1 |
Dimensions of exhaust connections l1xw1 [mm] | 152*203 | 254*203 |
Exhaust duct distance from rear of the hood w3 [mm] | 425 | 283 |
Number of supply air connections [pcs] | None | None |
Dimensions of supply air connections l2xw2 [mm] | None | None |
Number of Filtration Extractor [pcs] | 3 | 2 |
Size of Filtration Extractor [mm] | 500*400 | |
Quantity of exhaust air [m3/h] | 635 | 643 |
Pressure drop across the hood [Pa] | 62 | 130 |
Quantity of supply air [m3/h] | None | None |
Pressure of supply air [Pa] | None | None |

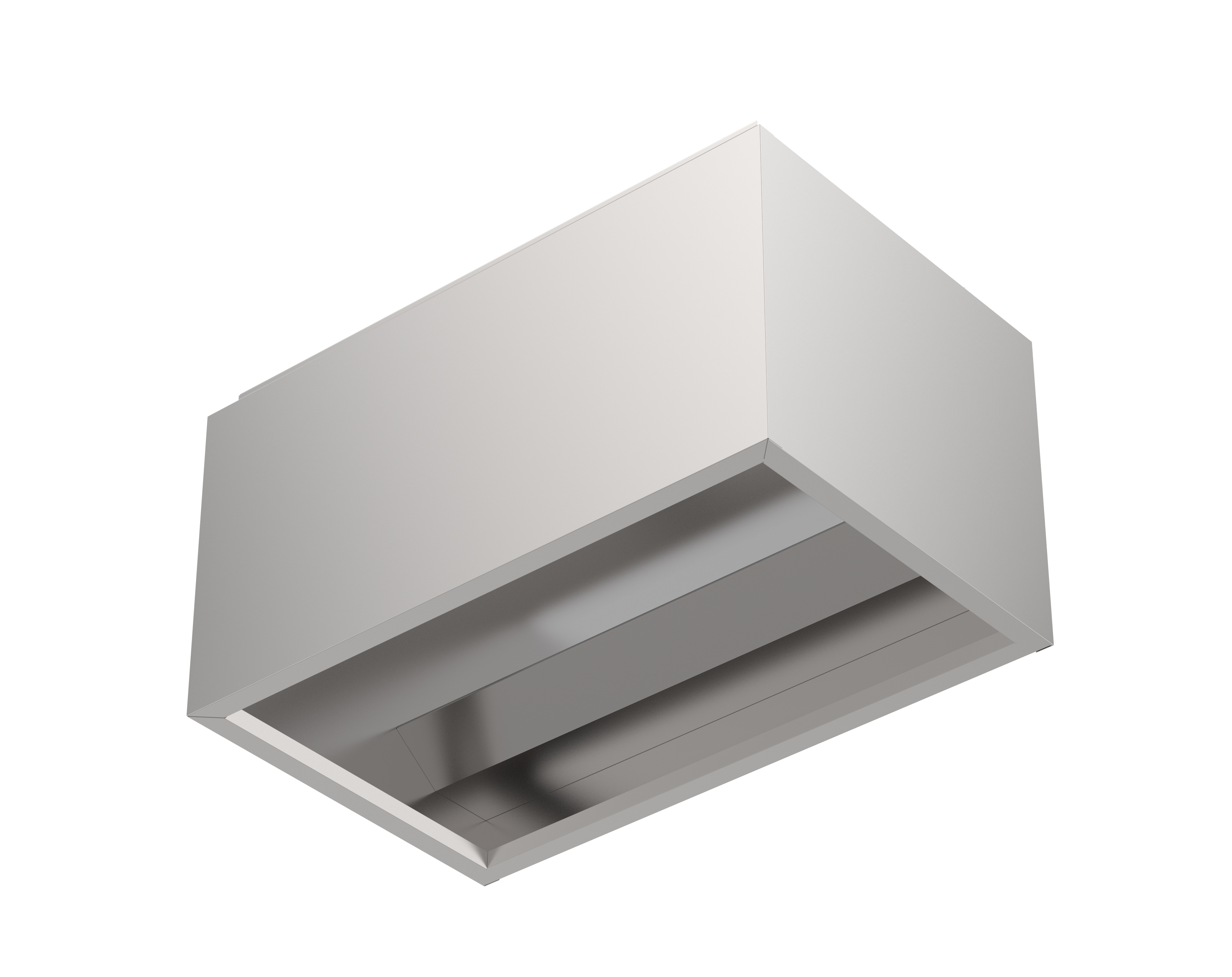

Universal Exhaust Hoods
Product Features:
• Stain finish with no welded seams to ensure easily cleaning.
• Heavy quality stainless steel 304 material.
• Cover panel up to the top of roof.
• Standard and common filter size design.
• Working for multi types of machines.
• Strictly process control and finished products inspection.
• Easily install.
• Wooden case packaging.
