Crossrails under structure
Options | CSY |
Top | 304 |
Rails | 201 |
Undershelf under structure
Options | SS | SI | SG |
Top | 304 | 304 | 304 |
Under | 304 | 430 | Gal. |
Model Number | DB | Bowl Size - mm | O.A.Dims - mm | Packing Dims - mm | Qty Pallet | CBM | |||||||
Qty | L | W | H | L | W | H | L | W | H | ||||

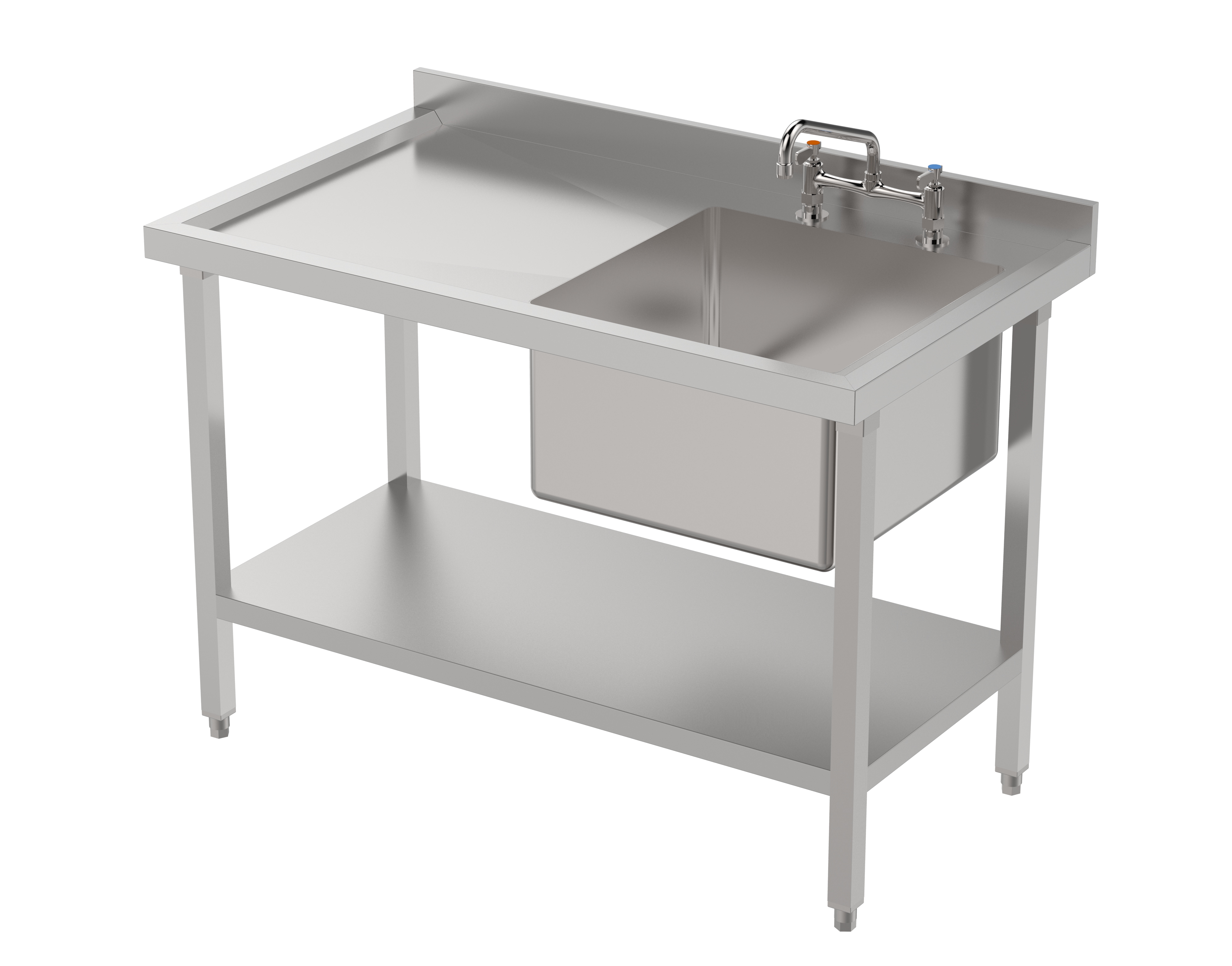

600 mm | ONE BOWL WITH SINGLE DRAINBOARD | ||||||||||||
JSE1-1006025L/RB6 | 1 | 400 | 400 | 250 | 1000 | 600 | 850+60 | 1010 | 610 | 280 | 8 | 0.173 | |
JSE1-1206025L/RB6 | 1 | 400 | 400 | 250 | 1200 | 600 | 850+60 | 1210 | 610 | 280 | 8 | 0.207 | |
JSE1-1406025L/RB6 | 1 | 500 | 400 | 250 | 1400 | 600 | 850+60 | 1410 | 610 | 280 | 8 | 0.241 | |
ONE BOWL WITH DOUBLE DRAINBOARDS | |||||||||||||
JSE1-1206025DB6 | 2 | 400 | 400 | 250 | 1200 | 600 | 850+60 | 1210 | 610 | 280 | 8 | 0.207 | |
JSE1-1406025DB6 | 2 | 400 | 400 | 250 | 1400 | 600 | 850+60 | 1410 | 610 | 280 | 8 | 0.241 | |
JSE1-1606025DB6 | 2 | 400 | 400 | 250 | 1600 | 600 | 850+60 | 1610 | 610 | 280 | 8 | 0.275 | |
TWO BOWLS WITH SINGLE DRAINBOARD | |||||||||||||
JSE2-1406025L/RB6 | 1 | 400 | 400 | 250 | 1400 | 600 | 850+60 | 1410 | 610 | 280 | 8 | 0.241 | |
JSE2-1506025L/RB6 | 1 | 400 | 400 | 250 | 1500 | 600 | 850+60 | 1510 | 610 | 280 | 8 | 0.258 | |
JSE2-1606025L/RB6 | 1 | 400 | 400 | 250 | 1600 | 600 | 850+60 | 1610 | 610 | 280 | 8 | 0.275 | |
JSE2-1606025L/RB6 | 1 | 500 | 400 | 250 | 1600 | 600 | 850+60 | 1610 | 610 | 280 | 8 | 0.275 | |
JSE2-1806025L/RB6 | 1 | 500 | 400 | 250 | 1800 | 600 | 850+60 | 1810 | 610 | 280 | 8 | 0.309 | |
JSE2-1906025L/RB6 | 1 | 500 | 400 | 250 | 1900 | 600 | 850+60 | 1910 | 610 | 280 | 8 | 0.326 | |
TWO BOWLS WITHOUT DRAINBOARD | |||||||||||||
JSE2-1206025NB6 | 0 | 500 | 400 | 250 | 1200 | 600 | 850+60 | 1210 | 610 | 280 | 8 | 0.207 | |
JSE21406025NB6 | 0 | 500 | 400 | 250 | 1400 | 600 | 850+60 | 1410 | 610 | 280 | 8 | 0.241 | |
TWO BOWLS WITH DOUBLE DRAINBOARDS | |||||||||||||
JSE2-1606025DB6 | 2 | 400 | 400 | 250 | 1600 | 600 | 850+60 | 1610 | 610 | 280 | 8 | 0.275 | |
JSE2-1806025DB6 | 2 | 500 | 400 | 250 | 1800 | 600 | 850+60 | 1810 | 610 | 280 | 8 | 0.309 | |
JSE2-1906025DB6 | 2 | 500 | 400 | 250 | 1900 | 600 | 850+60 | 1910 | 610 | 280 | 8 | 0.326 | |
JSE2-2106025DB6 | 2 | 500 | 400 | 250 | 2100 | 600 | 850+60 | 2110 | 610 | 280 | 8 | 0.360 | |
700 mm | ONE BOWL WITH SINGLE DRAINBOARD | ||||||||||||
JSE1-1007030L/RB6 | 1 | 500 | 500 | 300 | 1000 | 700 | 850+60 | 1010 | 710 | 330 | 7 | 0.237 | |
JSE1-1207030L/RB6 | 1 | 500 | 500 | 300 | 1200 | 700 | 850+60 | 1210 | 710 | 330 | 7 | 0.284 | |
JSE1-1407030L/RB6 | 1 | 500 | 500 | 300 | 1400 | 700 | 850+60 | 1410 | 710 | 330 | 7 | 0.330 | |
JSE1-1407030L/RB6 | 1 | 600 | 500 | 300 | 1400 | 700 | 850+60 | 1410 | 710 | 330 | 7 | 0.330 | |
ONE BOWL WITH DOUBLE DRAINBOARDS | |||||||||||||
JSE1-1407030DB6 | 2 | 500 | 500 | 300 | 1400 | 700 | 850+60 | 1410 | 710 | 330 | 7 | 0.330 | |
JSE1-1607030DB6 | 2 | 500 | 500 | 300 | 1600 | 700 | 850+60 | 1610 | 710 | 330 | 7 | 0.377 | |
TWO BOWLS WITH SINGLE DRAINBOARD | |||||||||||||
JSE2-1507030L/RB6 | 1 | 400 | 500 | 300 | 1500 | 700 | 850+60 | 1510 | 710 | 330 | 7 | 0.354 | |
JSE2-1607030L/RB6 | 1 | 500 | 500 | 300 | 1600 | 700 | 850+60 | 1610 | 710 | 330 | 7 | 0.377 | |
JSE2-1807030L/RB6 | 1 | 500 | 500 | 300 | 1800 | 700 | 850+60 | 1810 | 710 | 330 | 7 | 0.424 | |
JSE2-1907030L/RB6 | 1 | 500 | 500 | 300 | 1900 | 700 | 850+60 | 1910 | 710 | 330 | 7 | 0.448 | |
JSE2-1907030L/RB6 | 1 | 600 | 500 | 300 | 1900 | 700 | 850+60 | 1910 | 710 | 330 | 7 | 0.448 | |
JSE2-2007030L/RB6 | 1 | 500 | 500 | 300 | 2000 | 700 | 850+60 | 2010 | 710 | 330 | 7 | 0.471 | |
JSE2-2107030L/RB6 | 1 | 600 | 500 | 300 | 2100 | 700 | 850+60 | 2110 | 710 | 330 | 7 | 0.494 | |
TWO BOWLS WITHOUT DRAINBOARD | |||||||||||||
JSE2-1207030NB6 | 0 | 500 | 500 | 300 | 1200 | 700 | 850+60 | 1210 | 710 | 330 | 7 | 0.284 | |
JSE21407030NB6 | 0 | 500 | 500 | 300 | 1400 | 700 | 850+60 | 1410 | 710 | 330 | 7 | 0.330 | |
JSE21407030NB6 | 0 | 600 | 500 | 300 | 1400 | 700 | 850+60 | 1410 | 710 | 330 | 7 | 0.330 | |
TWO BOWLS WITH DOUBLE DRAINBOARDS | |||||||||||||
JSE2-1607030DB6 | 2 | 400 | 500 | 300 | 1600 | 700 | 850+60 | 1610 | 710 | 330 | 7 | 0.377 | |
JSE2-1807030DB6 | 2 | 500 | 500 | 300 | 1800 | 700 | 850+60 | 1810 | 710 | 330 | 7 | 0.424 | |
JSE2-1907030DB6 | 2 | 500 | 500 | 300 | 1900 | 700 | 850+60 | 1910 | 710 | 330 | 7 | 0.448 | |
